Expect About 60% of Rated Flow: Size Bilge Pumps for Boat Owners

For most recreational boats, start with a modest total rated bilge pump capacity scaled to boat length, increasing as boat size grows, and split across two or three pumps. Those numbers are a starting point, not a final answer. The real target is delivered flow at your boat’s actual head height, verified against the manufacturer’s performance curve, and always backed by an automatic primary pump plus a manual backup.

TL;DR:

• Pumps should be chosen based on actual delivered flow at your boat’s head height, not just the rated gallons per hour at zero head measurement.
• Using multiple pumps with independent circuits and float switches provides better redundancy than relying on a single large, high-capacity pump.
• Proper plumbing, especially matching hose diameter to pump outlet and avoiding restrictions, is critical to ensure rated flow performance.
• On-site measurements of head height and consulting manufacturer performance curves help accurately size pumps for real conditions.
• Regular maintenance of strainers, float switches, and wiring is essential to prevent silent failures and ensure reliable bilge pump operation.

Table of Contents

• Bilge Pump Sizing Checklist and Capacity Ranges by Boat Length
• How Do You Calculate the Bilge Pump Size You Actually Need?
• Plumbing and Placement: Where Pipe Size Quietly Sabotages Your Pump
• Electrical and Wiring: The Part Owners Most Often Get Wrong
• When Do CFR Minimums Apply Instead of Industry Guidance?
• Maintenance and the Backups You Should Never Skip
• What We See on Retrofits: Common Fixes and What to Bring to a Service Visit
• Size for Delivered Capacity, Not the Box Number
• Get Professional Help Sizing and Installing Your Bilge Pump
• Sources
• FAQ

Bilge Pump Sizing Checklist and Capacity Ranges by Boat Length

Every boat has a different bilge shape, a different vertical lift to the waterline, and a different tolerance for risk. Still, the marine industry has settled on rough capacity bands that work as a sane starting point before you get into the math. Think of these as the floor, not the ceiling.

Sport Fishing Magazine’s guidance on selecting a bilge pump system recommends building total capacity from multiple smaller pumps distributed across the bilge rather than betting everything on one large unit. Jamestown Distributors’ sizing guide backs similar length-based ranges, and both sources warn that these figures assume near-zero head, which almost never matches reality once a pump has to push water up and over a transom.

A few things push you toward the higher end of any given band or toward extra pumps entirely:

• Multiple watertight compartments that each need independent protection.
• A cockpit that drains into the bilge during a following sea or heavy rain.
• A generator or air conditioning system with its own condensate or raw water discharge feeding the same sump.
• An offshore or overnight cruising profile where nobody is aboard to notice a slow leak for hours.

Bigger is not automatically safer if it comes at the cost of redundancy. A single 4,000 GPH pump sounds impressive on a spec sheet, but if that one pump fails, its float switch corrodes, or its impeller jams on a stray zip tie, you have zero protection. Two or three mid-sized pumps wired independently, on separate circuits and separate float switches, survive a single point of failure in a way that one giant pump never will. That is why Go2Marine’s buying guide and most surveyors push conservative, distributed totals over one oversized unit.

How Do You Calculate the Bilge Pump Size You Actually Need?

The GPH number printed on the box is measured with zero head, meaning the pump is tested pumping water straight out with no vertical lift and no hose resistance. Your boat is not a laboratory. Once you factor in the real climb from your bilge to the through hull, plus hose friction and fittings, that rated number can drop by half or more. Sizing correctly means working backward from the conditions the pump will actually face.

1. Measure your vertical head. Run a tape measure (or a length of string and a tape) from the lowest point of your bilge, straight up to the through hull discharge point. Most recreational boats run somewhere between 2 and 5 feet of head, but deep-V hulls and boats with high freeboard can run higher.
2. Pull the manufacturer’s performance curve. Every reputable pump maker publishes a flow-versus-head chart. Find your measured head on the horizontal axis and read the actual GPH straight up from it. A pump rated at 1,100 GPH at zero head might only deliver 700 GPH at 4 feet of head, which is exactly the kind of gap Practical Sailor’s bilge pump guidance warns readers to check before buying.
3. Deduct for plumbing losses. Every 90 degree elbow, every foot of hose beyond about 6 feet, and every check valve chips away at flow. A rough rule: subtract another 10 to 20% from your curve-based number for a typical run with one or two bends and a check valve.
4. Apply the 60% rule as a final sanity check. Jamestown’s field guidance and Sport Fishing Magazine both note that real-world delivered flow tends to land around 60% of the labeled GPH once head and plumbing are accounted for. If your curve-and-loss math and the 60% rule land in the same neighborhood, you have a reliable number.
5. Round up, not down. If your calculated capacity leaves less than a 20% margin over your target GPH for that boat length, buy the next size up. Thin margins are exactly where a clogged strainer or a partly closed valve turns a manageable leak into a real problem.

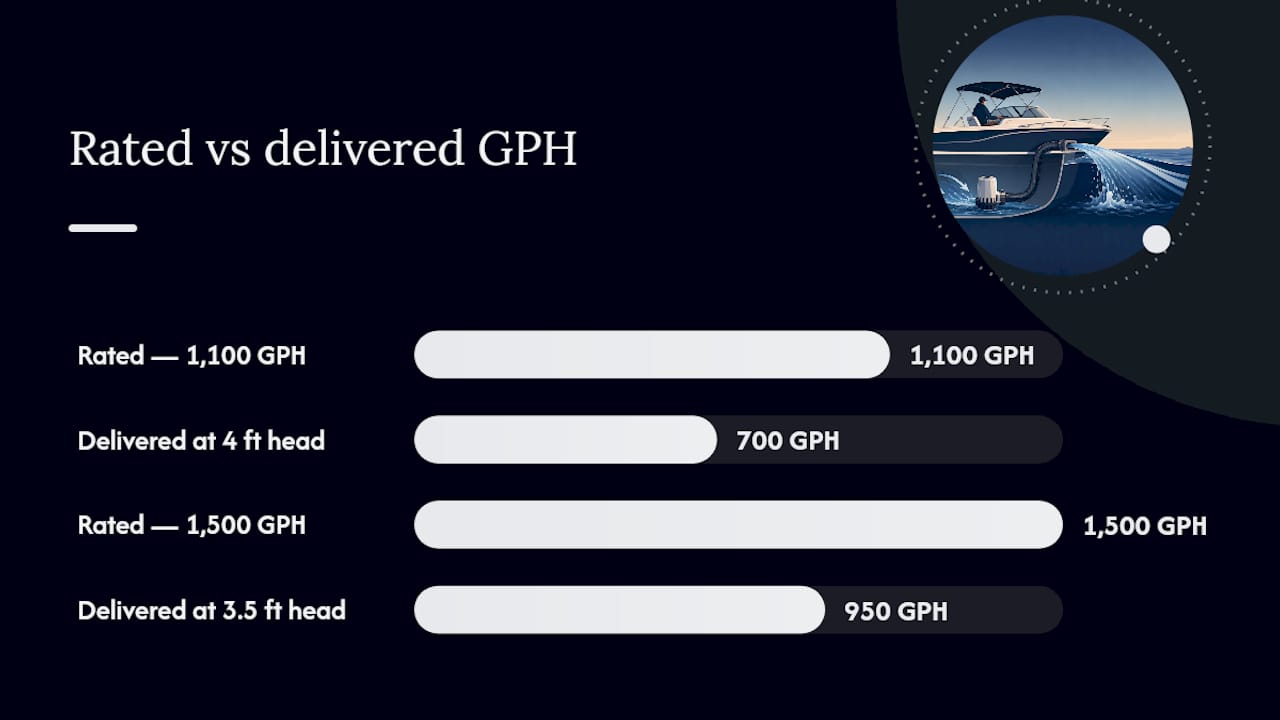

Here is how that plays out on a 24 foot center console with 3.5 feet of measured head. A pump rated 1,500 GPH at zero head might deliver only 950 GPH on its curve at 3.5 feet. Against a 1,500 to 2,000 GPH target for that length class, one pump alone falls short. That is your answer: add a second pump rather than chase a single larger unit that still may not clear the curve comfortably.

Pro Tip: Keep a printed copy of your pump’s performance curve taped inside a dry locker near the helm. When you’re troubleshooting at 2 a.m. with a headlamp, you don’t want to be searching a manufacturer’s website on spotty marina wifi.

Plumbing and Placement: Where Pipe Size Quietly Sabotages Your Pump

A 1,500 GPH pump plumbed into undersized hose will never deliver 1,500 GPH, no matter what the curve says. The pump can only push as much water as the hose and through hull allow past it, and this is where a lot of otherwise well-sized systems quietly underperform. Go2Marine’s guidance makes the point bluntly: a higher GPH label means nothing if the discharge plumbing chokes it back down.

Match the hose inside diameter to the pump’s rated outlet, never a size smaller. Dropping from a 1 1/8 inch outlet down to a 3/4 inch hose to save space or cost can cut delivered flow by a third or more, and it is one of the most common mistakes we run into on retrofits. A few placement principles worth building into any layout:

• Use smooth-bore hose rather than corrugated wherever possible; corrugated hose creates turbulence that measurably reduces flow, especially on pumps rated above 1,500 GPH.
• Mount the primary pump at the absolute lowest point of the bilge so it engages first and handles routine duty.
• Mount a secondary or backup pump several inches higher, on its own dedicated through hull, so it only kicks in for genuine high-water events and doesn’t share the primary’s wear cycle.
• Never share a single through hull between two pumps. If one pump’s check valve fails, the other pump can end up fighting backflow instead of discharging overboard.
• Install a check valve close to the through hull to stop backflow, but pair it with an anti-siphon loop above the waterline if the discharge point sits low, since a check valve alone can still allow siphoning under some heel angles.

Our plumbing, bilge, and thru-hull guide covers sizing and layout in more depth if you’re planning a full retrofit rather than a simple pump swap. And if the through hull itself looks corroded, cracked, or improperly bedded, that is a separate and more urgent problem than pump capacity. Our piece on handling thru-hull leaks walks through what to check before you sink money into a bigger pump that will still discharge through a failing fitting.

Electrical and Wiring: The Part Owners Most Often Get Wrong

A bilge pump only delivers its rated performance at its design voltage, and voltage drop from undersized wiring is one of the quietest ways a correctly sized pump underperforms. A 12 volt pump running on wire that’s too thin for the run length can see several tenths of a volt disappear before the current even reaches the motor, and pump output falls off fast below design voltage.

Standard marine wiring charts, cross-referenced against ABYC guidance on electrical installations, tie wire gauge to both amperage draw and one-way cable run length. As a practical baseline: most bilge pumps in the 750 to 2,000 GPH range draw between 3.5 and 8 amps, and a run under 10 feet typically calls for at least 14 gauge tinned marine wire, stepping up to 12 or 10 gauge as runs stretch past 20 feet. Longer runs, cramped conduit routing, or pumps at the higher end of that amperage range all justify sizing up rather than down.

• Fuse or breaker the pump circuit as close to the power source as practical, sized to the pump’s actual amp draw plus a margin, not to the wire’s maximum capacity.
• Wire automatic pumps to an independent battery feed, separate from house electronics, so a dead accessory battery doesn’t leave the bilge unprotected.
• Use tinned marine-grade wire and heat-shrink terminals at every connection; corrosion at a crimp is a far more common failure point than the pump motor itself.
• Keep runs as short and direct as the boat’s layout allows, since every extra foot adds resistance and heat.

Reliable charging matters just as much as correct gauge wire. If your house or start battery is chronically undercharged, even a perfectly wired pump circuit starts every emergency at a disadvantage. Bass Angler Magazine’s guide to keeping marine batteries charged is a useful reference if your charging system hasn’t had attention in a while.

When Do CFR Minimums Apply Instead of Industry Guidance?

Most recreational boat owners never have to think about federal bilge pumping minimums, because those rules target inspected and commercial vessels, not private recreational craft. 46 CFR 169.654 sets fixed minimums for certain inspected vessel categories:

• Vessels 26 to 40 feet require a fixed pump meeting minimum capacity requirements.
• Vessels 40 to 65 feet require a fixed pump with a higher minimum capacity.

If your boat is privately owned and operates purely for recreation, you are not bound by these figures. Your practical benchmark is ABYC H-22, the industry standard covering how bilge pumps are rated and tested, which is what most manufacturers and surveyors reference when they publish performance curves. The moment a boat is inspected for hire, carries passengers for compensation, or operates under a commercial certificate, CFR minimums become mandatory and a licensed surveyor or your flag-state authority is the right party to confirm compliance, not a sizing guide.

Maintenance and the Backups You Should Never Skip

A correctly sized pump that’s clogged, corroded, or wired to a dead float switch protects nobody. Debris, mechanical float switch failure, and corroded wiring connections account for the overwhelming majority of bilge pump failures reported in the field, and all three are catchable with a five minute check.

1. Pull and inspect the strainer monthly; line, hair, and debris are the single most common cause of pump failure.
2. Test the float switch by hand, lifting it to confirm the pump engages and shuts off cleanly.
3. Check wiring connections for green corrosion or looseness, especially at the pump’s quick-disconnect fitting.
4. Consider a solid-state electronic sensor instead of a mechanical float switch. They have no moving parts to jam or fatigue and tend to be more reliable over a season of hard use.
5. Keep a manual diaphragm pump aboard as a genuine backup, and know your bailing plan if every electric pump fails at once.

Pro Tip: A cheap solid-state float switch costs less than a single service call, and it eliminates the most common reason bilge pumps fail silently over a winter in storage.

What We See on Retrofits: Common Fixes and What to Bring to a Service Visit

Most bilge pump service calls we handle aren’t about the pump at all. They’re about a 3/4 inch hose feeding a pump that needs a full inch, a through hull that was never upsized when the pump was upgraded, or a battery feed that was tapped off an already maxed-out accessory circuit. Cramped engine room access often means the fix takes longer than the part swap itself.

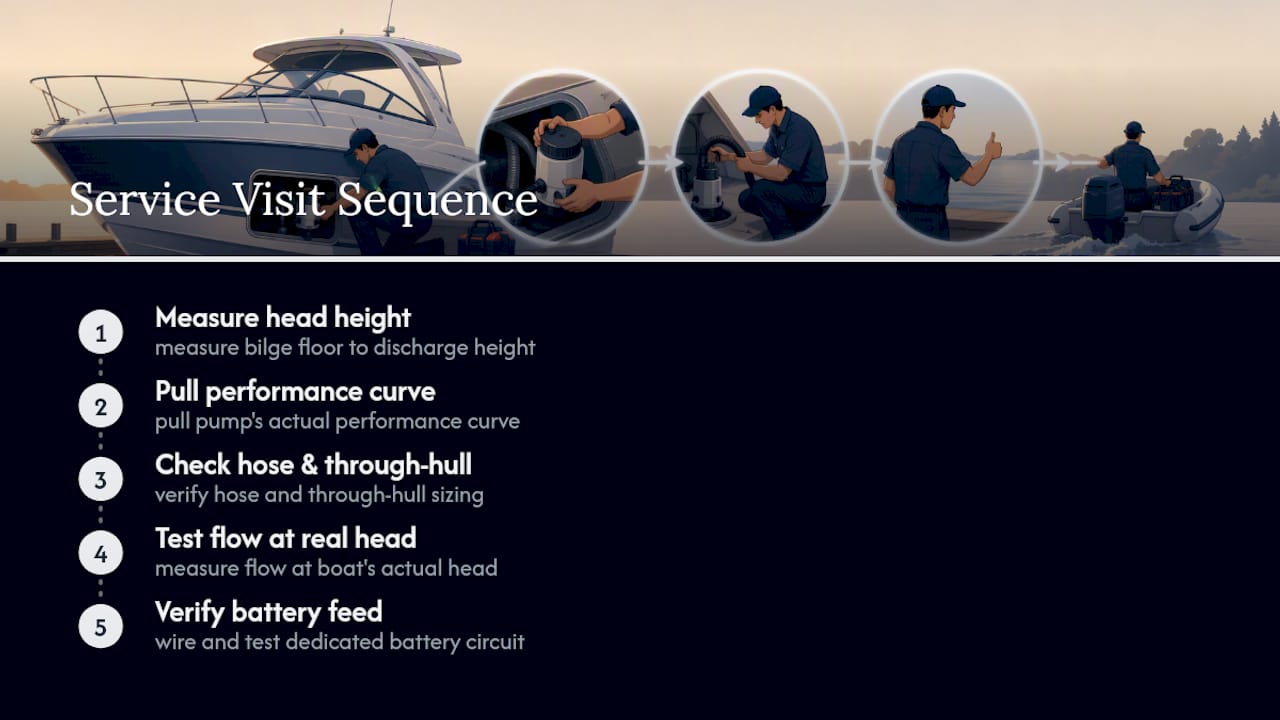

A typical visit starts with measuring head height, pulling the pump’s actual performance curve, and checking hose and through hull sizing before we even discuss pump models. We test flow at your boat’s real head, not a catalog number, and we wire automatic pumps to their own battery feed as standard practice.

To speed up your estimate, bring photos of your current bilge layout, the nameplate data off your existing pump, and rough measurements from bilge floor to discharge point. It saves a return visit and gets you a firmer quote the first time.

Size for Delivered Capacity, Not the Box Number

The single biggest mistake I see boat owners make is buying based on the highest GPH number at the store, then never checking what that pump actually delivers at their boat’s head height. Size for redundancy and real-world flow, not marketing math. Measure your head, pull the curve, check your hose diameter, and if the numbers don’t leave you a comfortable margin, call a professional rather than guessing.

— Jason

Get Professional Help Sizing and Installing Your Bilge Pump

Professional services handle the part most sizing guides can’t: putting hands on your actual bilge, measuring real head height, and matching pump, hose, and thru-hull together so the system performs the way the curve promises. That’s the gap between reading a chart and having a technician confirm your boat clears its margin.

Our technicians measure vertical head on site, pull manufacturer performance curves against your specific pump, and upgrade hose or thru-hull sizing where it’s choking flow, all with properly fused, independent battery feeds rather than a splice into an already crowded circuit. If your bilge system has never been tested against a real head measurement, or you’re planning a refit that touches plumbing or electrical anyway, our marine repair service guide covers what a proper installation visit includes. For anything urgent, water rising faster than a single pump can keep up with, our emergency repair service gets a technician moving the same day. To get a fast, accurate estimate, send us photos of your current bilge, your pump’s nameplate, and your boat’s length. Reach out to professional marine technicians to get your bilge system properly sized and tested before the next storm season, not after.

Sources

• Selecting the right bilge pump system — Sport Fishing Magazine
• What size bilge pump do I need? — Jamestown Distributors support
• 46 CFR 169.654 (U.S. Code of Federal Regulations)

FAQ

How do you calculate the right bilge pump size?

Measure the vertical head from your bilge floor to the discharge through hull, read your pump’s flow at that head on its manufacturer performance curve, then subtract another 10 to 20% for hose length, bends, and check valves to get a realistic delivered flow figure.

What size bilge pump do I need for a 24 foot boat?

Most 24 foot boats need 1,500 to 2,000 GPH of total combined capacity split across two pumps, though your exact head height and hull shape can push that number higher once you run the calculation.

What is the outlet size on a Rule 1100 GPH bilge pump?

Rule’s typical bilge pumps often use a 3/4 inch hose outlet; always confirm the exact fitting size against the pump’s nameplate before buying hose, since mismatched diameter chokes delivered flow regardless of the pump’s rating.

How many GPM is a typical bilge pump?

Rated flow is usually listed in GPH rather than GPM, but most recreational pumps commonly fall within ranges that exceed the minimums CFR sets for certain inspected commercial vessels.

Is it better to use one large pump or multiple smaller pumps?

Multiple smaller pumps distributed across the bilge and wired independently are generally safer than one large pump, since a single point of failure, whether a jammed float switch or a blown fuse, won’t leave the boat with zero protection.
